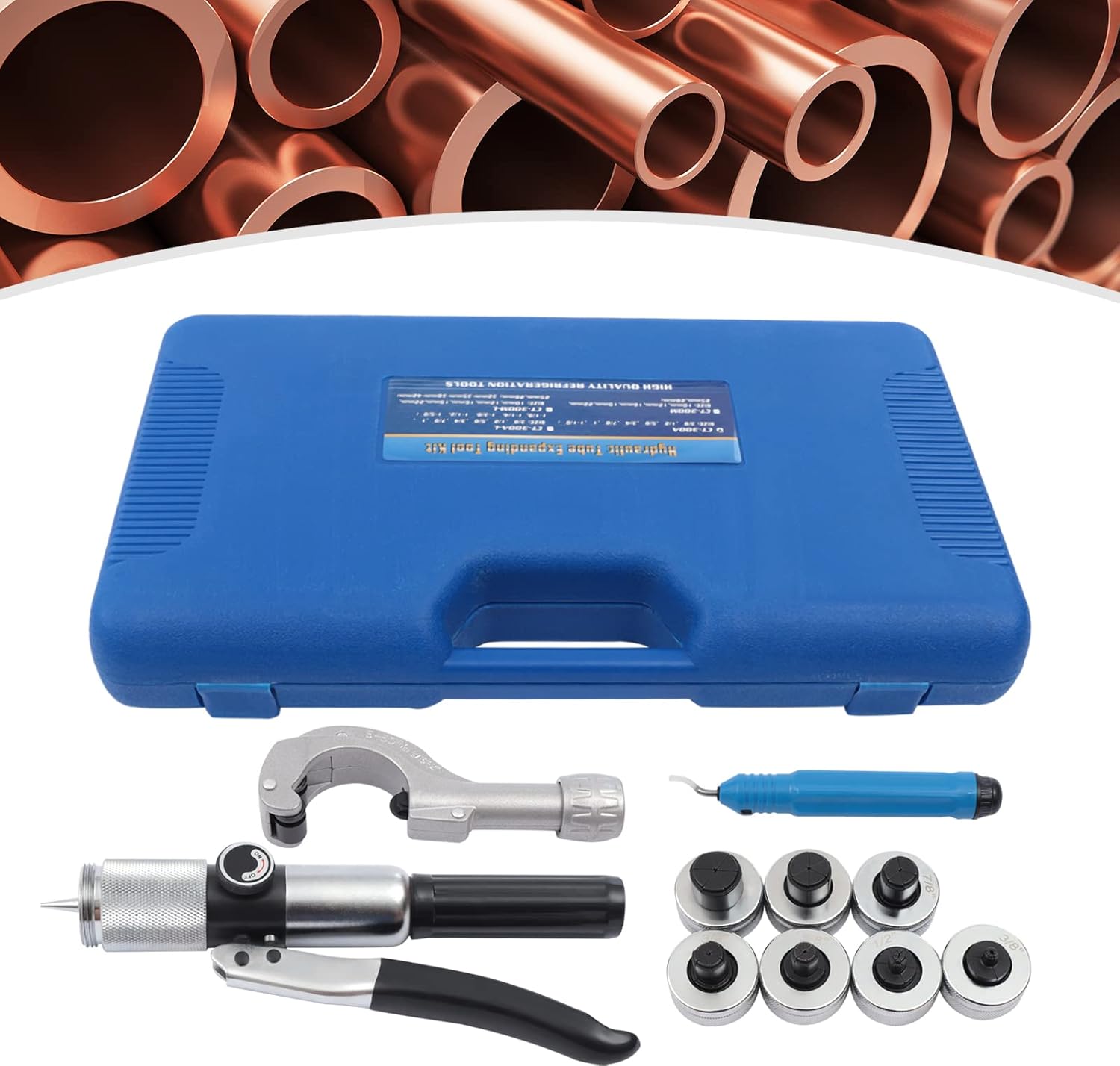

Hydraulic Expander Tool Tube Expander Tool Swaging Kit 7 Expander Heads with Tube Cutter 3/8 1/2 5/8 3/4 7/8 1 1-1/8 Inch, HVAC Hydraulic Swaging Tool Kit for Copper Tubing Expanding

Hydraulic Expander Tool - 7 Expander Heads 3/8 1/2 5/8 3/4 7/8 1 1-1/8 Inch with Tube Cutter ApplicationThe Hydraulic Tube Expander Tool Swaging Kit is mainly used in underfloor heating, air conditioning, sanitary ware and other areas to expand copper or aluminum tubes.How to Use1. Remove burrs from the inside of the tube.2. Anneal the tube if necessary (for hard or thick wall tubes).3. Screw the expander head onto the expander.4. Insert the end of the tube fully into the expander.5. Tighten the relief valve knob to the ‘ON’ position, then pump handle until the tube is expanded to the end.6. Turn the pressure-reducing valve to the OFF position to release the expander head and remove the expanded tube.SpecificationModel: CT-300Material: 45# Steel and Aluminum AlloyColor: Silver, BlackPower Source: Manual Hydraulic-poweredCarrying Case Color: BlueExpander Heads Size: 3/8'', 1/2'', 5/8'', 3/4'', 7/8'', 1'', 1-1/8''Hydraulic Tube Expander Size: 28*12cm/11*4.7inCut Tube Size Range: 6-50 mm/0.25-2inTube Cutter Length: 18cm/7.1inDeburring Tool Length: 15cm/5.9inPacking Size: 45*25*7cm/17.71*9.84*2.75inGross Weight: 3kg/6.61lbsPackage Included1 * Hydraulic Tube Expander1 * Tube Cutter1 * Deburring Tool7 * Expander Heads1 * Blue Carrying Case1* English User ManualNotes1. For hard tubes, please anneal the tube before expanding to prevent cracking or hard expanding.2. Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

• 👍 【Manual Hydraulic Design】With its manual hydraulic mechanism design, The Hydraulic Tube Expander Tool Swaging Kit is easy to grasp the degree of expansion and prevent pipe cracking, making it easy and efficient to complete expansion work.
• 👍 【High Efficiency】The hydraulic oil chamber of the hydraulic expander is 20% larger than the normal one. This allows for greater expansion when using the same force, without having to worry about the R410 thickened pipes.
• 👍 【High-quality Materials】It is made of high-quality 45# steel and aluminum alloy, which is hard, durable, scratch-resistant, and wear-resistant, ensuring a long service life. Compared to traditional welding, this hydraulic tube expander requires only one side to be welded, reducing installation costs and the possibility of leakage.
• 👍 【7 Expander Head Sizes】With 7 expander head sizes, the Hydraulic Tube Expander Tool Swaging Kit can be used to expand a wide range of tubes from 3/8" to 1-1/8" to meet your different needs.
• 👍 【Flexible Valve】With a flexible hydraulic control valve on the expander, you can quickly release the pressure and remove the tube when expansion is complete, greatly increasing your efficiency. It's lightweight (6.61lbs) and all the tools are stored in a plastic carrying case, making it very easy to carry around.
